ISDN
The most common type of circuit switching used in business today is an ISDN. “Integrated services” means that a user can send voice, data, and video across the network at the same time. “Digital” refers to the fact that the lines provided by the telephone company transmit digital, not analog, signals. Digital is cleaner and faster than analog. Computers using a normal analog phone line use modems to convert between the computer’s digital signal and the phone line’s analog capabilities. ISDN, being digital, requires no modem but does require the use of a network adapter. It looks just like an external modem but costs three times as much.
ISDN comes in two sizes: large and really large. Basic rate interface (BRI) is normally used by a single person, while dozens of employees may use one primary rate interface (PRI) connection for voice and data traffic. BRI is used for applications such as telecommuting, Internet access for a single user, and, occasionally, videoconferencing. PRI has the same bandwidth as a T-1 and is used for similar purposes: to connect multiple users to the Internet or to carry voice calls from a PBX to a carrier.
BRI
ISDN technicians say BRI is “2B + D,” meaning the service has two separate bearer channels for transmitting information and one data channel used behind the scenes for signaling. The bearer channels have 64-Kbps bandwidth each, and the data channel has 16-Kbps bandwidth.
PRI
PRI is “23B + D.” There are 23 bearer channels and 1 data signaling channel. These 24 channels are the standard used in the United States and in Japan. Elsewhere in the world, PRI ISDN uses 30 channels. One of the main advantages of the D channel used in PRI ISDN is that an inbound caller’s phone number can be passed along to the PBX, which is very helpful for call centers.
ISDN pricing
ISDN installation costs vary widely from carrier to carrier and can sometimes be waived. After the customer has purchased the equipment and paid for the installation, the following monthly recurring charges apply with both types of ISDN: line charges, local calls (if measured service), and longdistance toll calling.
Monthly line charges for BRI ISDN are between $50 and $150. PRI ISDN line charges are normally between $300 and $1,000. The charges for local calling and long-distance calling are about the same as standard voice telephone call rates.
ISDN began to be widely offered by the telephone companies in the late 1980s. Although the service promised many improvements over previous technologies, customers were not eager to subscribe. Some blamed poor marketing by the telephone companies, but the real reason is probably because the initial service offerings were too confusing to business people. The phone companies required prospective ISDN customers to be too involved in minor technical decisions. The whole process was a turnoff to business people, and ISDN got a bad name. Some said ISDN really stood for “innovations subscribers don’t need.” Over the past few years, the telephone companies have made new activations less painful, and the demand for fast connections to the Internet has breathed new life into ISDN service.
ISDN loose traffic
ISDN is a measured service, and users pay for each minute of calling in addition to a flat monthly fee. If a new ISDN customer does not inform the long distance carrier of the new ISDN line, then the calls will be billed on the LEC’s ISDN bill. The calls will be billed at casual rates, which may be $0.35 to $3 per minute. Customers whose ISDN calls are being billed at casual rates on their LEC bill should inform their long-distance carrier, which can move the ISDN loose traffic to the long-distance bill. This should result in much lower pricing.
Although circuit switching was an improvement over dedicated private lines, phone company upper management still was not satisfied and continued to worry about traffic jams on their telephone network. The biggest problem with circuit switching, from a telephone company perspective, is that, similar to regular voice calls, the phone company circuit is tied up for the entire length of the phone call. During a regular voice call, if one person sets the phone down to check the roast in the oven or answer the doorbell, the phone line is still tied up. Even though the line is quiet and no data is being passed across it, the line is still tied up and no one else can use it.
When thousands of businesses across the country make simultaneous circuit switching calls, there may eventually be a shortage of capacity. Once again, phone companies sent their engineers back to the drawing board with a similar charge “to figure out a way to send even more data across the existing phone network.” The end result was packet switching.
Circuit switching
Circuit switching
Overview
The original telephone service consisted of two phones in two separate locations connected by a single line. To call multiple locations required multiple phone lines. Cities across America began to be covered with a network of unsightly telephone wires. After the switchboard was invented, a person could call any other phone using a single telephone line. Half a century later, the same situation occurred, except this time it was with data calls instead of voice calls.
With dedicated private lines, two remote computers connect over a distance using a fixed circuit. That circuit cannot be shared by anyone else. But the phone companies do not like their lines being tied up, so they invented circuit switching.
With circuit switching, the caller (normally a computer) dials the other caller and the two have exclusive use of the phone line until they decide to end the communication. Once the communication is finished, the connection ends and the line is available for another caller. Circuit switching works just like a regular voice phone call between two people; they call, they chat, they hang up.
At the beginning of each circuit switched call, the network determines the route of the call. That path, or circuit, is open for the duration of the call. On the next call, the network may choose an alternate path (see Figure 1). With packet switching, the network establishes a permanent route for the call. On each call, the data travels across the same path in the network. In frame-relay networks, this is called a PVC.
Figure 1: Circuit switching.
Overview
The original telephone service consisted of two phones in two separate locations connected by a single line. To call multiple locations required multiple phone lines. Cities across America began to be covered with a network of unsightly telephone wires. After the switchboard was invented, a person could call any other phone using a single telephone line. Half a century later, the same situation occurred, except this time it was with data calls instead of voice calls.
With dedicated private lines, two remote computers connect over a distance using a fixed circuit. That circuit cannot be shared by anyone else. But the phone companies do not like their lines being tied up, so they invented circuit switching.
With circuit switching, the caller (normally a computer) dials the other caller and the two have exclusive use of the phone line until they decide to end the communication. Once the communication is finished, the connection ends and the line is available for another caller. Circuit switching works just like a regular voice phone call between two people; they call, they chat, they hang up.
At the beginning of each circuit switched call, the network determines the route of the call. That path, or circuit, is open for the duration of the call. On the next call, the network may choose an alternate path (see Figure 1). With packet switching, the network establishes a permanent route for the call. On each call, the data travels across the same path in the network. In frame-relay networks, this is called a PVC.
Dedicated private lines : Consolidate circuits, Volume and term discounts, Update pricing
Consolidate circuits
When numerous data circuits terminate at the same customer location, it is possible to consolidate the smaller circuits into one large circuit, especially in the case of point-to-point circuits. As previously explained, the first leg of a dedicated private line is the local loop. In many cases, a business can consolidate its various local loops into one circuit with greater bandwidth.
For example, a manufacturer in Marietta, Georgia, was expanding into other states. When a new facility was opened, a new 56-Kbps dedicated private line was installed from the Georgia office to the new facility. The cost of each 56-Kbps line was based on the local loop charges in Marietta, the IEX mileage, and the local loop charges at the new location (see Figure 1). The Marietta local loop charge was $150 on each of the five lines. In total, the business paid $750 for 280 Kbps of bandwidth.

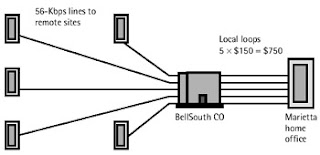

Figure 1: A company in Marietta, Georgia, has five data lines connecting to remote sites in other states.
When the company had five dedicated 56-Kbps lines, the BellSouth account manager helped it cut its cost. The business consolidated all of the traffic from the five data lines onto a single T-1 data line that gave the business four times more bandwidth at a cost of only $350 per month (see Figure 2).
Figure 2: Five local loops are replaced with a single T-1 connection.
In another example, a pharmaceutical research facility in Wisconsin paid more than $10,000 for a dozen T-1s used for voice and data. The telecom manager cut the cost in half by consolidating all of the T-1s onto a single T-3.
Volume and term discounts
Dedicated line charges are nonfluctuating charges, so volume discounts usually do not apply. Data services are more subject to term discounts. The simplest way to cut the cost of data services is to sign a term agreement with the carrier. Unlike other telecom services, data term agreements can be as long as 7 years. Table 16.1 shows how data circuit discounts are often structured.
Table 1: Typical Monthly Pricing for Data Circuits
Update pricing
The tariffs filed with state and federal regulatory bodies describe carriers’ service offerings and detail pricing information. From time to time, carriers update their tariffs. Prices usually go up, but sometimes they go down. The phone companies also might add a short-term promotion, to stimulate sales activity.
Once or twice a year, you should contact your carrier and find out the latest pricing for the services they currently use. If the new pricing is lower than your current pricing, ask the carrier to upgrade you to the latest offering. Carriers always say “this pricing is only available for new customers, not existing customers.” Sometimes, however, a sympathetic account manager will implement the new low pricing anyway. It helps if the customer has some leverage in the negotiations.
LATTIS.PRO
Some consultants use LATTIS.PRO to check circuit pricing. The software instantly tells you prices for circuits throughout North America. The prices will be broken down according to each circuit element. LATTIS, which is a fee-based service, is located on the Internet at www.triquad.com/lattis.html.
Add promotions to the account
Consider the following example: A Sacramento, California, publisher had a dedicated T-1 line connecting to a marketing office in Phoenix, Arizona. The T-1 was provided by Qwest and cost $1,365 each month. The publisher learned from a friend that Qwest was waiving local loop charges in Sacramento for all new orders for dedicated T-1s. Armed with this information, the publisher approached Qwest and requested the promotion.
The publisher’s long-distance contract with Qwest was about to expire. The account executive did not want to lose the account, so he added the promotion to the publisher’s T-1 bill. Waiving the local loop charges saved the business $185 per month.
When numerous data circuits terminate at the same customer location, it is possible to consolidate the smaller circuits into one large circuit, especially in the case of point-to-point circuits. As previously explained, the first leg of a dedicated private line is the local loop. In many cases, a business can consolidate its various local loops into one circuit with greater bandwidth.
For example, a manufacturer in Marietta, Georgia, was expanding into other states. When a new facility was opened, a new 56-Kbps dedicated private line was installed from the Georgia office to the new facility. The cost of each 56-Kbps line was based on the local loop charges in Marietta, the IEX mileage, and the local loop charges at the new location (see Figure 1). The Marietta local loop charge was $150 on each of the five lines. In total, the business paid $750 for 280 Kbps of bandwidth.
When the company had five dedicated 56-Kbps lines, the BellSouth account manager helped it cut its cost. The business consolidated all of the traffic from the five data lines onto a single T-1 data line that gave the business four times more bandwidth at a cost of only $350 per month (see Figure 2).
In another example, a pharmaceutical research facility in Wisconsin paid more than $10,000 for a dozen T-1s used for voice and data. The telecom manager cut the cost in half by consolidating all of the T-1s onto a single T-3.
Volume and term discounts
Dedicated line charges are nonfluctuating charges, so volume discounts usually do not apply. Data services are more subject to term discounts. The simplest way to cut the cost of data services is to sign a term agreement with the carrier. Unlike other telecom services, data term agreements can be as long as 7 years. Table 16.1 shows how data circuit discounts are often structured.
Update pricing
The tariffs filed with state and federal regulatory bodies describe carriers’ service offerings and detail pricing information. From time to time, carriers update their tariffs. Prices usually go up, but sometimes they go down. The phone companies also might add a short-term promotion, to stimulate sales activity.
Once or twice a year, you should contact your carrier and find out the latest pricing for the services they currently use. If the new pricing is lower than your current pricing, ask the carrier to upgrade you to the latest offering. Carriers always say “this pricing is only available for new customers, not existing customers.” Sometimes, however, a sympathetic account manager will implement the new low pricing anyway. It helps if the customer has some leverage in the negotiations.
LATTIS.PRO
Some consultants use LATTIS.PRO to check circuit pricing. The software instantly tells you prices for circuits throughout North America. The prices will be broken down according to each circuit element. LATTIS, which is a fee-based service, is located on the Internet at www.triquad.com/lattis.html.
Add promotions to the account
Consider the following example: A Sacramento, California, publisher had a dedicated T-1 line connecting to a marketing office in Phoenix, Arizona. The T-1 was provided by Qwest and cost $1,365 each month. The publisher learned from a friend that Qwest was waiving local loop charges in Sacramento for all new orders for dedicated T-1s. Armed with this information, the publisher approached Qwest and requested the promotion.
The publisher’s long-distance contract with Qwest was about to expire. The account executive did not want to lose the account, so he added the promotion to the publisher’s T-1 bill. Waiving the local loop charges saved the business $185 per month.
Dedicated private lines : Correct mileage errors, Disconnect dead circuits, Network diagram audit
Correct mileage errors
Dedicated private line pricing is based on bandwidth and mileage. The further the distance between the two points, the greater the cost. A T-1 between Baltimore, Maryland, and Baton Rouge, Louisiana, costs more than a T-1 between Baltimore and Buffalo, New York. The mileage is based on the exact distance “as the crow flies” between the two central offices at the endpoints of the circuit. Customers are sometimes misbilled because of incorrect mileage calculations.
In some cases, the carrier’s mileage calculations are incorrect. A common sense review of the phone bill and CSR may expose an erroneous calculation. Most carrier account managers will take the time to help you double-check your mileage charges. If an error is found, the carrier will correct the pricing and refund the overcharges.
Disconnect dead circuits
When a telecom service is no longer used, the customer should immediately cancel the service. In many organizations, the telecom department quits using a service and forgets to tell the accounts payable department. Consequently, the phone bills continue to be paid every month. Many customers wrongly assume that no longer using a service tells the carrier, “We’re done using this service, please quit billing us.”
Carriers never close accounts unless a customer tells them to. If they did, they would risk canceling a customer’s legitimate service. Because data accounts have flat-rate pricing, inactive accounts still generate the full amount of revenue for carriers. They make sure the customer has canceled the service prior to forfeiting this revenue.
For example, a New York-based travel agency paid for services it no longer used. Through a partnership with a nationwide travel company based in Philadelphia, the New York travel agent sold tickets for cruises, hotel rooms, and vacation packages. Each of its five offices in New York was equipped with a computer terminal that connected directly to the nationwide travel company’s reservation office across dedicated private lines. The nationwide company supplied a special computer terminal, and the New York agency was responsible for paying for the dedicated private lines each month.
After a few years, the two companies decided to end the partnership. The nationwide travel company picked up the computers, and the New York travel agency figured the project was closed out. The agency’s accounts payable clerk continued to pay for the service for the next 2 years. The company never canceled the dedicated private lines with its carrier.
Years later, an outside auditor noticed the data lines terminating in Philadelphia. Once he found out the two companies were no longer business partners, the services were canceled. Correcting this error created thousands of dollars in monthly savings for the company. Even though the problem was the customer’s fault, the carrier still issued a significant “good faith” refund to the customer.
Cancel dangling circuits
When a customer cancels a point-to-point data circuit, carriers sometimes fail to disconnect the circuit at both locations. This results in being billed for a dangling circuit, which is like the tin can phone with only one can. Dangling circuits are most prone to show up when a private line is furnished and billed by two separate carriers.
Phone bills for dedicated private lines usually do not give enough detail to detect dangling circuits. You must call customer service and ask for the addresses of both circuit locations. You can also check the CSRs for the circuits. Local carriers and some long-distance carriers, such as AT&T, keep CSRs. The carrier’s CSRs always specify the locations of the origination and termination points of a dedicated private line. If the CSR only lists one location, it is probably a dangling circuit that should be disconnected.
Network diagram audit
An organization’s IT department usually maintains a network diagram. If a circuit is no longer used, the IT staff erases it from the network diagram. If the staff forgets to cancel the billing with the carrier, the organization may go on paying the bill for years. An effective way to locate unused data lines is to match up the company’s internal network diagram with the actual phone bills. The diagram reflects exactly what data services are in use at each location, and the phone bills reflect the actual services that are currently being billed.
Dedicated private line pricing is based on bandwidth and mileage. The further the distance between the two points, the greater the cost. A T-1 between Baltimore, Maryland, and Baton Rouge, Louisiana, costs more than a T-1 between Baltimore and Buffalo, New York. The mileage is based on the exact distance “as the crow flies” between the two central offices at the endpoints of the circuit. Customers are sometimes misbilled because of incorrect mileage calculations.
In some cases, the carrier’s mileage calculations are incorrect. A common sense review of the phone bill and CSR may expose an erroneous calculation. Most carrier account managers will take the time to help you double-check your mileage charges. If an error is found, the carrier will correct the pricing and refund the overcharges.
Disconnect dead circuits
When a telecom service is no longer used, the customer should immediately cancel the service. In many organizations, the telecom department quits using a service and forgets to tell the accounts payable department. Consequently, the phone bills continue to be paid every month. Many customers wrongly assume that no longer using a service tells the carrier, “We’re done using this service, please quit billing us.”
Carriers never close accounts unless a customer tells them to. If they did, they would risk canceling a customer’s legitimate service. Because data accounts have flat-rate pricing, inactive accounts still generate the full amount of revenue for carriers. They make sure the customer has canceled the service prior to forfeiting this revenue.
For example, a New York-based travel agency paid for services it no longer used. Through a partnership with a nationwide travel company based in Philadelphia, the New York travel agent sold tickets for cruises, hotel rooms, and vacation packages. Each of its five offices in New York was equipped with a computer terminal that connected directly to the nationwide travel company’s reservation office across dedicated private lines. The nationwide company supplied a special computer terminal, and the New York agency was responsible for paying for the dedicated private lines each month.
After a few years, the two companies decided to end the partnership. The nationwide travel company picked up the computers, and the New York travel agency figured the project was closed out. The agency’s accounts payable clerk continued to pay for the service for the next 2 years. The company never canceled the dedicated private lines with its carrier.
Years later, an outside auditor noticed the data lines terminating in Philadelphia. Once he found out the two companies were no longer business partners, the services were canceled. Correcting this error created thousands of dollars in monthly savings for the company. Even though the problem was the customer’s fault, the carrier still issued a significant “good faith” refund to the customer.
Cancel dangling circuits
When a customer cancels a point-to-point data circuit, carriers sometimes fail to disconnect the circuit at both locations. This results in being billed for a dangling circuit, which is like the tin can phone with only one can. Dangling circuits are most prone to show up when a private line is furnished and billed by two separate carriers.
Phone bills for dedicated private lines usually do not give enough detail to detect dangling circuits. You must call customer service and ask for the addresses of both circuit locations. You can also check the CSRs for the circuits. Local carriers and some long-distance carriers, such as AT&T, keep CSRs. The carrier’s CSRs always specify the locations of the origination and termination points of a dedicated private line. If the CSR only lists one location, it is probably a dangling circuit that should be disconnected.
Network diagram audit
An organization’s IT department usually maintains a network diagram. If a circuit is no longer used, the IT staff erases it from the network diagram. If the staff forgets to cancel the billing with the carrier, the organization may go on paying the bill for years. An effective way to locate unused data lines is to match up the company’s internal network diagram with the actual phone bills. The diagram reflects exactly what data services are in use at each location, and the phone bills reflect the actual services that are currently being billed.
